3-DOF Flapping Wing – Example 1#

This example demonstrates a 3-DOF rotational mechanism applied to a flapping wing system, showcasing how complex kinematic behaviors can be visualized using FlapKine.

The wing motion in this example is inspired by insect flight kinematics, adapted from a published model [1]. The objective is to verify whether FlapKine can faithfully reproduce multi-axis flapping behavior. As shown in this simulation, the system performs as expected and aligns qualitatively with the referenced model.

Note

We highly recommend reviewing the simpler example first: 1-DOF Flapping Wing before attempting this walkthrough.

Overview#

This example simulates a wing structure undergoing:

  • Rotation about three orthogonal axes (z, y, and x)

Although no actual translation occurs during the simulation, a fixed linear translation is applied to position the body frame origin at (0, 0, -3). This constant offset ensures that the wing does not overlap with its mirrored counterpart when using the Reflect feature in FlapKine.

In biological systems such as insects, left and right wings are physically separated in space. To replicate this spatial arrangement and avoid mesh collision at the inertial origin (0, 0, 0), we use this adjustment as a simple yet effective workaround. The time-series position data (X, Y, Z) reflects this fixed offset throughout the simulation.

Files Included#

  • `project.zip`: A compressed archive containing both the full simulation project and the necessary resource files.

Upon extraction, the archive is structured into the following directories:

  • `3_DOF_1/`: Contains the full FlapKine project, ready to be loaded and rendered.

  • `Resource/`: Contains STL meshes, joint angle CSVs, and supplementary plots used for verification or to reproduce the simulation manually.

Project Folder Structure#

The 3_DOF_1/ folder includes the following:

3_DOF_1/
├── scene.pkl          # Scene Class object saved as a pickle file
├── config.json        # Configuration file with simulation and rendering settings
└── data/              # Output directory for generated frames or videos

Resource Files#

The Resource/ folder contains the required data for kinematic input and visualization:

Resource/
├── angles/
│   ├── alpha_data.csv    # Rotation about the x-axis (time series values)
│   ├── beta_data.csv     # Rotation about the y-axis (all zeros)
│   └── gamma_data.csv    # Rotation about the z-axis (time-series values)
├── origin_position/
│   └── pos_data.csv      # Position of Body Origin (time-series values with constant value in this case)
├── stl/
│   └── wing.stl          # 3D mesh of the wing
├── angle_plot.png        # Plot of the rotation angles over time
└── pos_plot.png          # Plot of the body origin position over time

Initial STL Orientation#

The wing.stl model is oriented such that:

  • The x-axis aligns with the wing span (length).

  • The y-axis aligns with the wing chord (width).

  • The z-axis corresponds to the wing thickness.

Simulation Details#

This example demonstrates a three rotational degree of freedom system, where rotation about the z-axis, y-axis, and x-axis is active. The time-dependent rotation is defined by the files gamma_data.csv, beta_data.csv, and alpha_data.csv, which collectively describe the full 3D orientation of the flapping wing over time.

Although the system is purely rotational in its kinematic design, a constant positional offset is introduced through the translation files X.csv, Y.csv, and Z.csv. These contain fixed values (0, 0, -3) to shift the body frame origin downward. This offset ensures spatial separation between mirrored wings when using the Reflect option, avoiding overlap at the inertial origin (0, 0, 0).

The corresponding plots below illustrate the time-series data used in the simulation:

Rotation Angles Plot

Figure: Time-series plot of the rotation angles (alpha, beta, and gamma) defining the wing’s orientation. All three rotational degrees of freedom are active in this simulation.#

Although no actual motion occurs along the translational axes, the body frame origin is fixed at a constant offset of (0, 0, -3) using the translation CSV files. This static shift ensures mirrored wings do not collide at the inertial origin when Reflect is enabled.

Position Plot

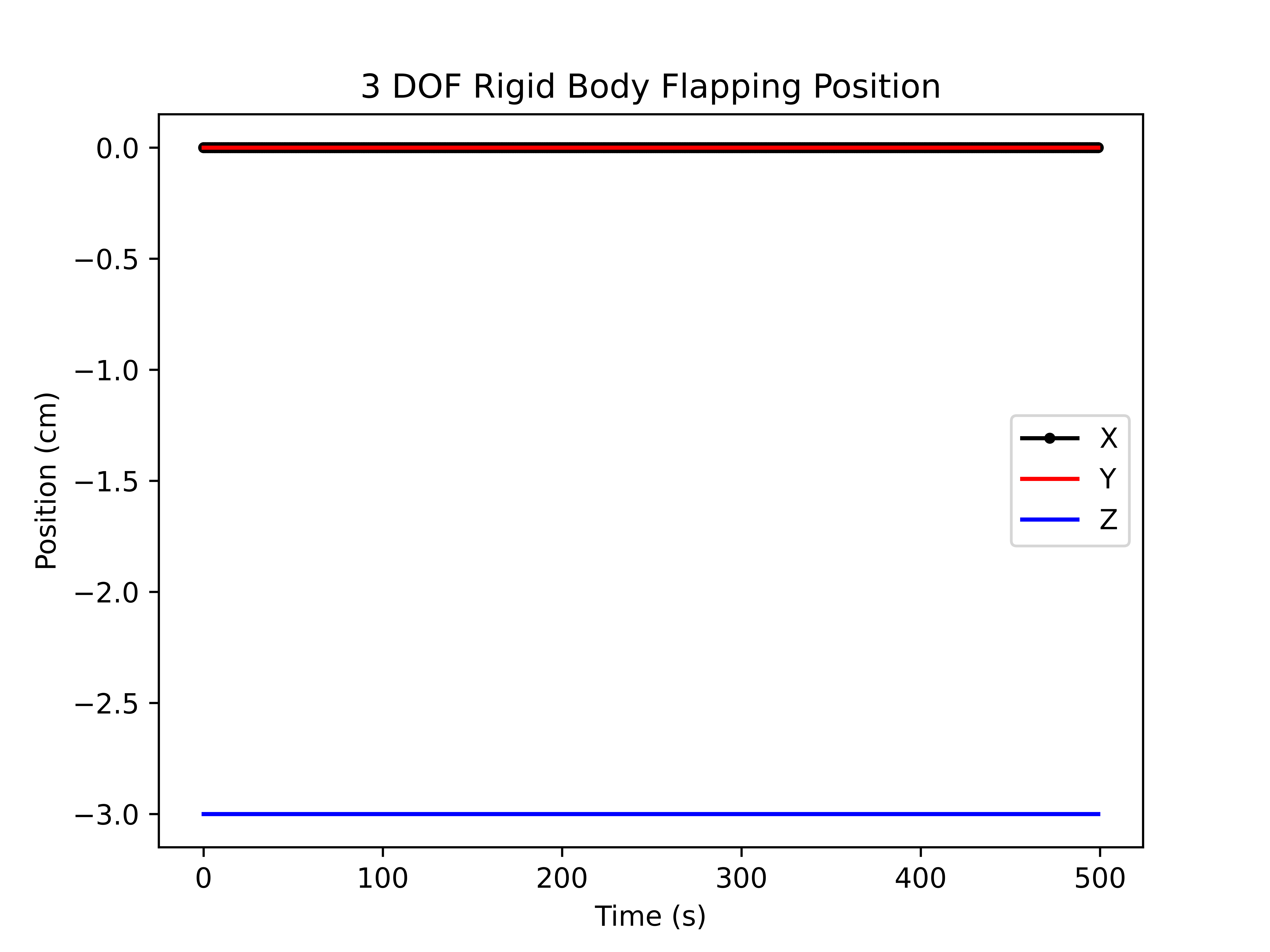

Figure: Time-series plot of the translational positions (X, Y, and Z) of the body frame origin. The constant values reflect the static positional offset applied throughout the simulation.#

Running the Example#

  1. Extract the project.zip archive to your desired directory.

  2. Launch the FlapKine application and select Load Project.

  3. Navigate to the 3_DOF_1/ folder and choose the directory.

  4. The project will load with a pre-configured scene. Below is a screenshot of the loaded project:

Project Screenshot

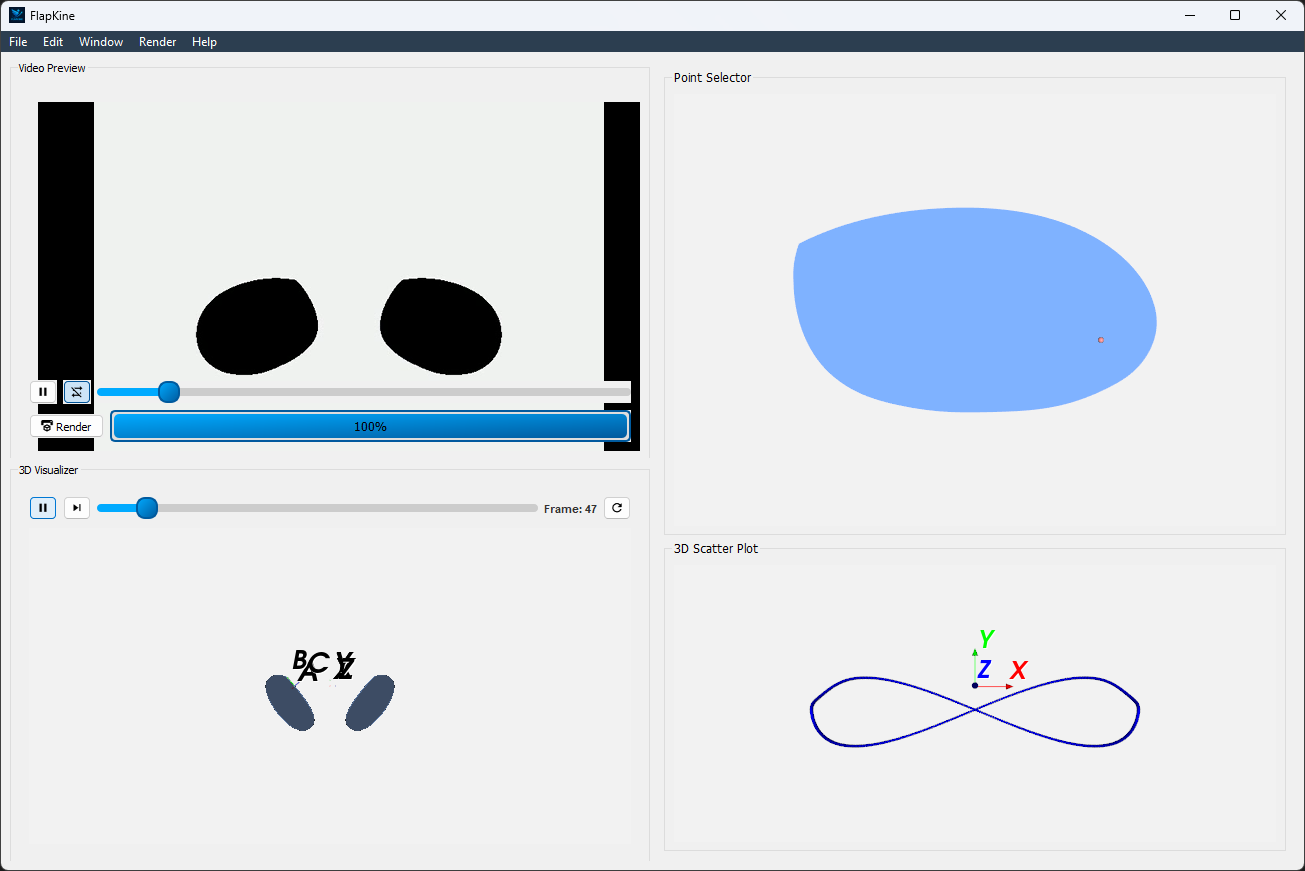

Figure: Screenshot of the project loaded in FlapKine.#

  1. The project folder does not include the rendered video by default. To generate it, click on the Render button in the GUI. The simulation will be rendered and the output video saved under data/videos/.

    Note

    See the Project Editor Window section for more details about the GUI and its functionality.

Below is a short preview showcasing the rendered simulation output for this example:

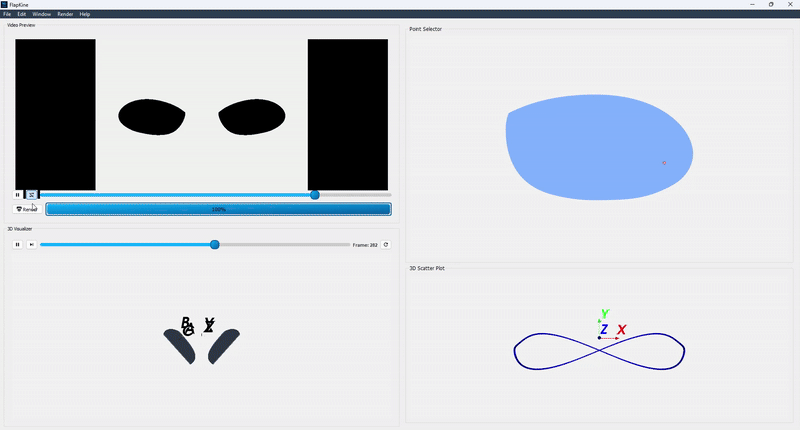

Rendered Simulation Preview

Figure: Rendered simulation preview after completing the scene setup and clicking the Render button in FlapKine.#

For higher quality or longer playback, you can render a full-resolution .mp4 video directly using the Render button. The video will be saved automatically in the data/videos/ folder within your project directory.

Reproducing from Scratch#

To recreate this project manually, follow the same reproduction steps outlined in 2-DOF + Translating Flapping Wing. However, make sure to use the corresponding resources files provided with this 3-DOF example instead.

References

Download

Get the resource from: Download Link
